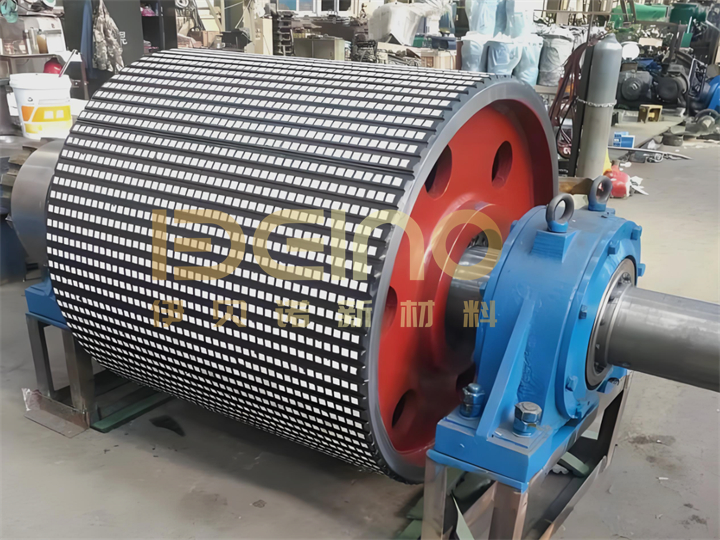

Ceramic Pulley Lagging Rubber Sheet Custom Size Ceramic Lagging Sheet

Name: Ceramic Pulley Lagging Rubber Sheet Custom Size Ceramic Lagging Sheet
Brand: Hunan Yibeinuo New Material Co., Ltd.
SKU: 陶磁器の遅延シート
Availability: InStock

プロダクト細部

起源の場所: チャンシャ、湖南、中国

ブランド名: Elacera

証明: ISO9001-2015

モデル番号: 陶磁器の遅延シート

支払及び船積みの言葉

最小注文数量: 交渉可能

価格: 交渉可能

パッケージの詳細: 木製のケースまたは鉄のラックに詰められています

受渡し時間: 25-45ワークダス

支払条件: T/T

供給の能力: 100,000㎡/年

最もよい価格を得なさい

プロダクト細部

製品の説明

ハイライト:
                                                                                                                                                                                                                                                                                                                                                                                                                                                ceramic lagging sheet for conveyor belts, 500mm ceramic lagging sheet, ceramic pulley lagging sheet


耐摩耗性:	高い	接着:	強い
応用:	コンベアベルトの遅延	認定:	ISO 9001、ISO 14001
耐薬品性:	酸と塩基	色:	白
密度:	3.75g/cm3	特徴:	防滑低騒音熱隔熱
難燃剤:	はい	柔軟性:	フレキシブル
使用法:	重労働産業用	幅:	500mm

耐摩耗性:	高い
接着:	強い
応用:	コンベアベルトの遅延
認定:	ISO 9001、ISO 14001
耐薬品性:	酸と塩基
色:	白
密度:	3.75g/cm3
特徴:	防滑低騒音熱隔熱
難燃剤:	はい
柔軟性:	フレキシブル
使用法:	重労働産業用
幅:	500mm

Ceramic Pulley Lagging Rubber Sheet Custom Size Ceramic Lagging Sheet

Product description

The Ceramic Pulley Lagging Rubber Sheet is a highly effective, wear-resistant solution designed for material conveying systems across multiple industries. It's constructed from high-quality alumina ceramic (hardness exceeding HRA85) and highly elastic rubber through a high-temperature vulcanization process. The ceramic layer boasts over 10 times the wear resistance of ordinary rubber, protecting it from erosion by hard materials such as coal, ore, and cement. The rubber layer absorbs impact, prevents ceramic shedding, and enhances friction between the pulley and the conveyor belt to prevent slipping.

The product offers high and low temperature resistance from -40°C to 120°C, as well as acid and alkali resistance. Customizable to suit pulley size and operating conditions, it's suitable for both new and refurbished pulleys. It significantly extends pulley life by 3-5 times, while reducing energy consumption and maintenance costs. It's widely used in conveyor pulleys across industries such as coal, mineral processing, cement, steel, ports, thermal power, and the chemical industry, providing reliable and stable wear protection for customers worldwide.

Core Features: Wear-resistant, non-slip, and impact-resistant, suitable for complex working conditions.
Highly Wear-Resistant Ceramic Layer: Utilizing high-quality alumina ceramic as the core wear-resistant material, the ceramic boasts a hardness exceeding HRA85 and boasts wear resistance over 10 times that of ordinary rubber. This layer effectively withstands long-term erosion from hard materials such as coal, ore, and cement, significantly extending the roller's service life.
Highly Adhesive Composite Structure: Through a special process, the ceramic layer is tightly bonded to a highly elastic rubber base. The rubber layer possesses excellent elasticity and cushioning properties, absorbing material impact and preventing ceramic dislodgement due to severe vibration. It also enhances friction between the roller and the conveyor belt, preventing slippage and ensuring stable operation of the conveyor system.
Weather-Resistant and Corrosion-Resistant: The product's surface undergoes a special treatment for excellent acid and alkali resistance, ensuring stable performance in humid port environments, corrosive chemical environments, and high-temperature thermal power plant environments, requiring no frequent maintenance.

Comparison table of the friction coefficient

Application conditions	Metal smooth without rubber	Diamond rubber	Ceramic rubber
Dry	0.35-0.40	0.40-0.45	0.76-0.85
Wet	0.10-0.15	0.30-0.35	0.50-0.80
Muddy	0.05-0.10	0.22-0.28	0.45-0.55

Product model

Item	Description	Dimensions(mm)	Customizable
1	Rubber ceramic	125050020/16/15	YES
2	Rubber ceramic	140050020/16/15	YES
3	Rubber ceramic	150050020/16/15	YES
4	Rubber ceramic	160050020/16/15	YES
5	Rubber ceramic	190050020/16/15	YES
6	Rubber ceramic	210050020/16/15	YES
7	Rubber ceramic	250050020/16/15	YES

Production Process
Ceramic pulley lagging adheres to the following strict production process to ensure product quality:
Raw Material Screening: High-purity alumina powder (≥92%) and high-quality natural rubber are selected to ensure that the raw materials meet performance standards.
Ceramic Sheet Forming and Sintering: The alumina powder is pressed and sintered at 1700°C to form a high-hardness ceramic sheet.
Rubber Vulcanization: The rubber raw material is mixed with a vulcanizing agent and vulcanized in a vulcanizer to form an elastic rubber base.
Composite Molding: Using a high-temperature vulcanization process, the ceramic sheet and rubber base are laminated to form a ceramic-rubber composite layer.
Pulley Fitting: The composite layer is cut and polished according to the customer's pulley dimensions to ensure a precise fit.
Quality Inspection: Ceramic hardness, rubber elasticity, and composite layer adhesion are tested. Only qualified products are packaged and shipped.
If you have custom requirements for ceramic pulley lagging or would like to learn more about our product applications in specific industries, please feel free to contact us. We will provide professional solutions and excellent service!

Export Markets: Global Presence, Quality Recognized in Multiple Countries
Our ceramic pulley lagging products are exported to numerous countries and regions worldwide. Core export markets include:
Asian markets: emerging industrial nations such as India, Indonesia, and Vietnam (meeting local infrastructure and mining development needs);
African markets: South Africa, Nigeria, and others (focusing on the transportation needs of the mining and energy industries);
European and American markets: Germany, the United Kingdom, and the United States (meeting the standards of high-end industrial scenarios with high quality and customized services);
South American markets: Brazil, Chile, and others (meeting the transportation needs of the mining industries).
We deliver our products quickly through international logistics and provide comprehensive after-sales technical support to ensure worry-free use for our global customers.

FAQ:

Q1: Does the ceramic sheet of the ceramic pulley lagging easily fall off?

A: No. We use a high-temperature vulcanization process to tightly bond the ceramic sheet to the rubber layer. The rubber layer is then secured to the metal surface of the pulley with a specialized adhesive. The adhesive is strong and has been tested to withstand a peel force exceeding 150N. Under normal operating conditions, the ceramic sheet will not fall off.

Q2: Can ceramic lagging be refurbished on old pulleys?

A: Yes. Simply derust and polish the old pulley surface, removing the old, aged lagging. Then, ceramic lagging can be installed. Refurbishment costs only one-third of replacing a new pulley, significantly reducing costs.

Q3: Does the product have quality certification?

A: Yes. Our ceramic pulley lagging is ISO9001 certified.

Q4: What is the thickness of the ceramic lagging? How do I determine the appropriate thickness?

A: Common thicknesses include 8mm, 12mm, 15mm, and 20mm. The specific thickness should be selected based on the operating conditions. For conveying hard materials such as ore and sand (mines and ports), 15-20mm is recommended; for conveying lightweight materials (food and textiles), 8-12mm is recommended. For pulley diameters greater than 800mm or for high operating speeds, 12-15mm is recommended. Customization recommendations can be provided based on the customer's specific operating conditions.

Q5: What are the core advantages of ceramic pulley lagging compared to traditional rubber lagging?

A: First, it extends service life by 3-5 times, reducing downtime and maintenance costs. Second, the non-slip texture of the ceramic surface reduces motor energy consumption and prevents localized wear on the conveyor belt. Third, it is customizable and suitable for both new and retrofitted pulleys, making installation simple and non-disruptive.

Q6: Do you support custom sizes?
A: Yes, we can customize the drum diameter, width, and tile arrangement.

Q7: Are anti-static or flame-retardant models available?
A: We offer special rubber materials such as anti-static and flame-retardant to meet safety requirements in chemical and coal mining applications.
